Optoelectronic composite cable
Type:
Product Feature:

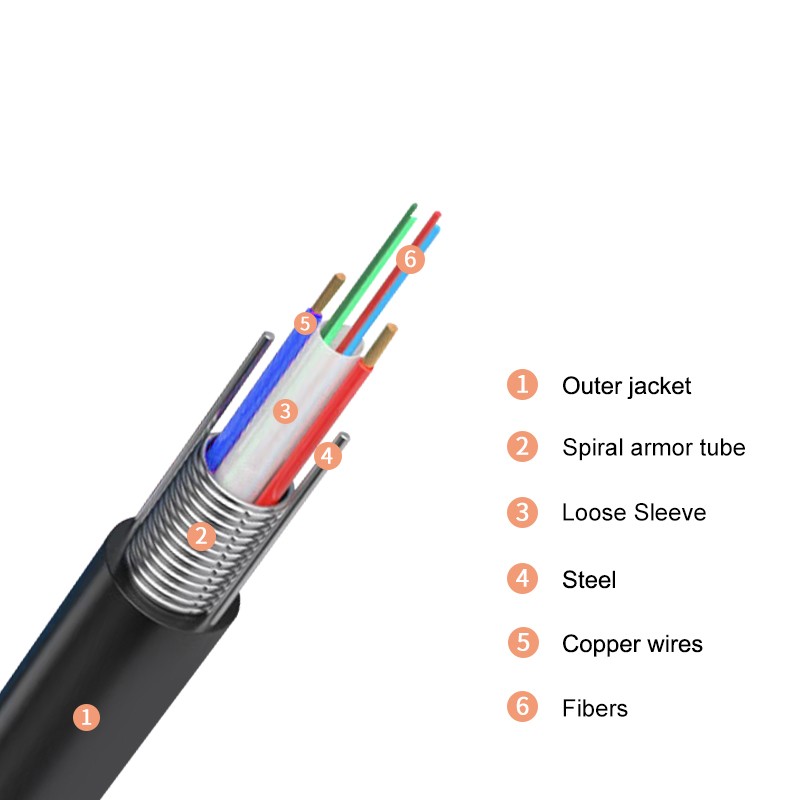

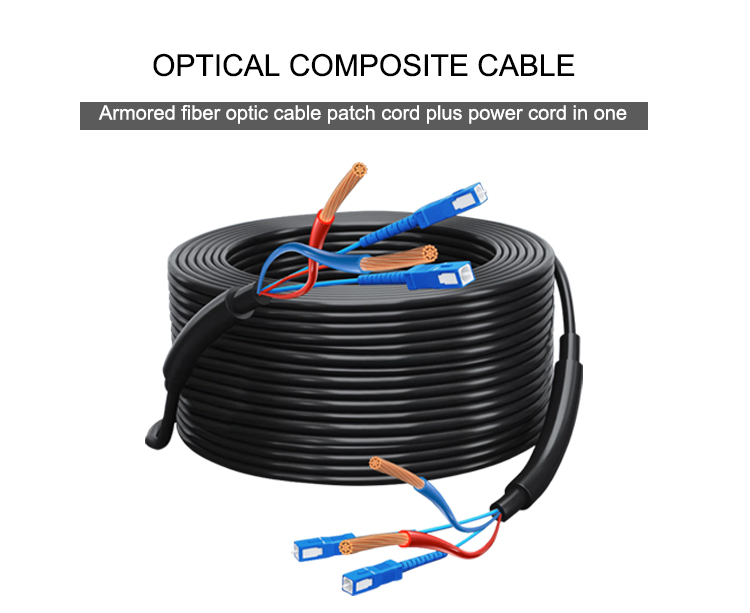

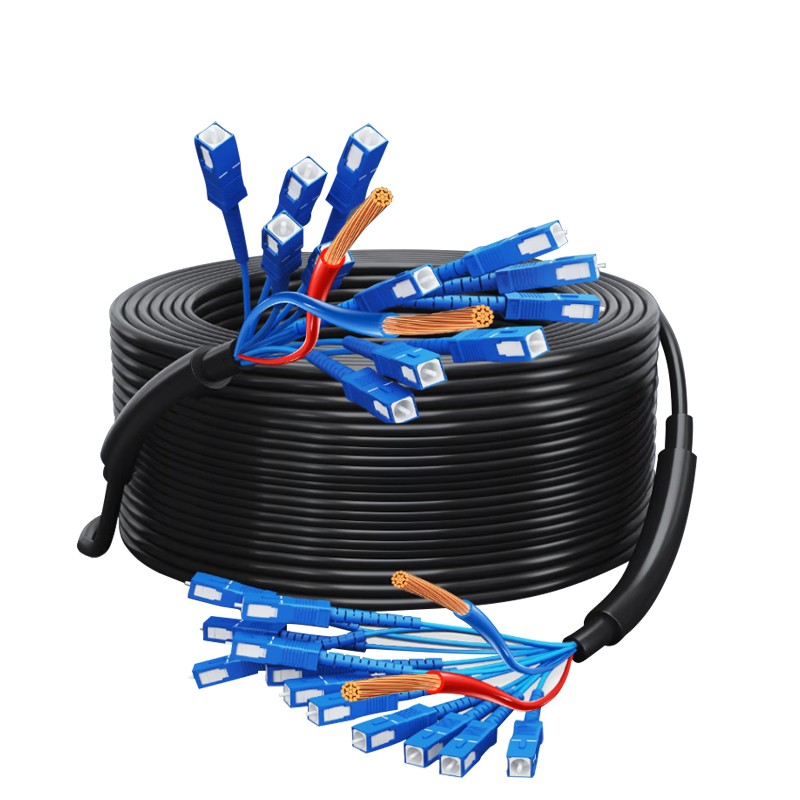

Optical-electric hybrid cable: Armored patch cord + integrated power cable finished product:
☆.Small outer diameter, light weight, small space occupation (a series of problems that usually require multiple cables can be replaced by an optical-electric hybrid cable);
☆. Has excellent bending performance and good lateral pressure resistance, easy construction;
☆.Provides multiple transmission technologies at the same time, the equipment has high adaptability, strong scalability, and a wide range of product applications
Support customization of various specifications
Cable core number: 4/8/12 cores (customizable)
Power line temperature: -15℃-70℃
Temperature of other materials except power supply: -15℃-70℃
Allowable tension (N) long-term/short-term: 200/660
Allowable pressure (N) long-term/short-term: 300/1000
Bending radius static/dynamic (mm): 10D/20D
For more details, please consult customer service
