GYTC8S Self-supporting Cable
Type：
Product Feature：
☆. Full-section water-blocking structure, ensuring good water-blocking performance

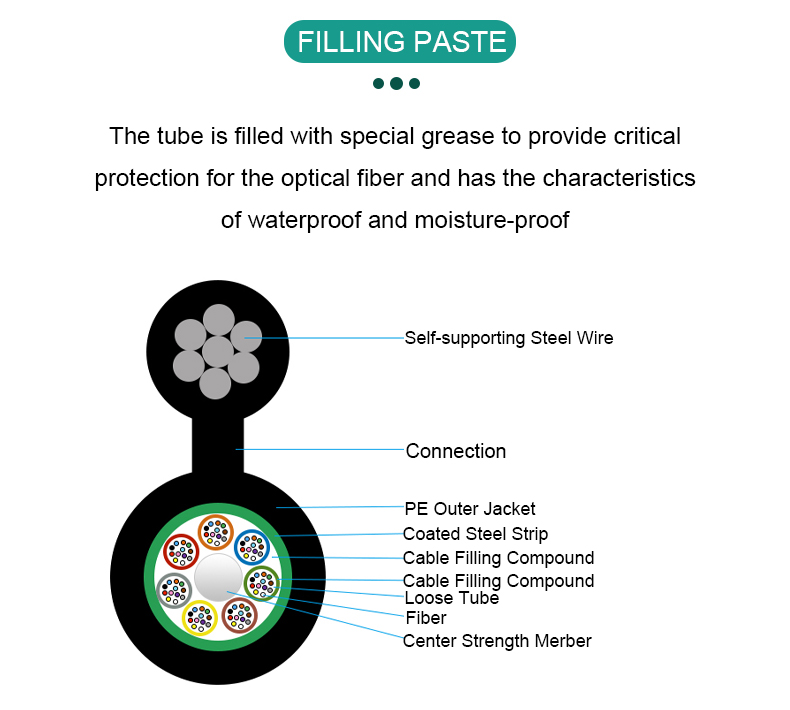

☆. Special grease is filled in the loose tube to provide critical protection for the optical fiber

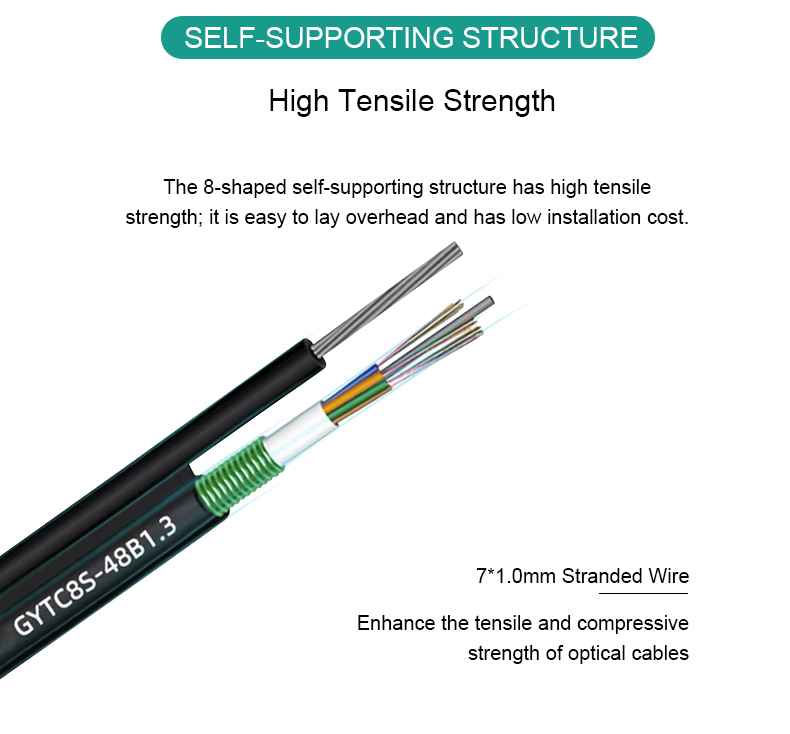

☆.The 8-shaped self-supporting structure has high tensile strength, is easy to lay overhead, and has low installation cost

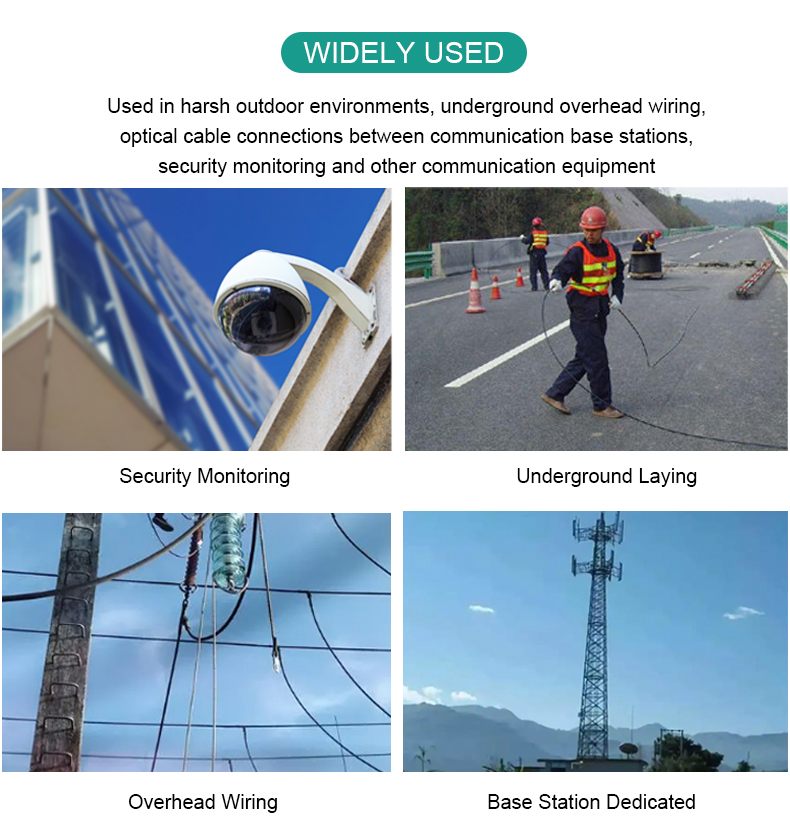

Suitable for outdoor wiring, overhead pipeline laying, long-distance communication, etc.

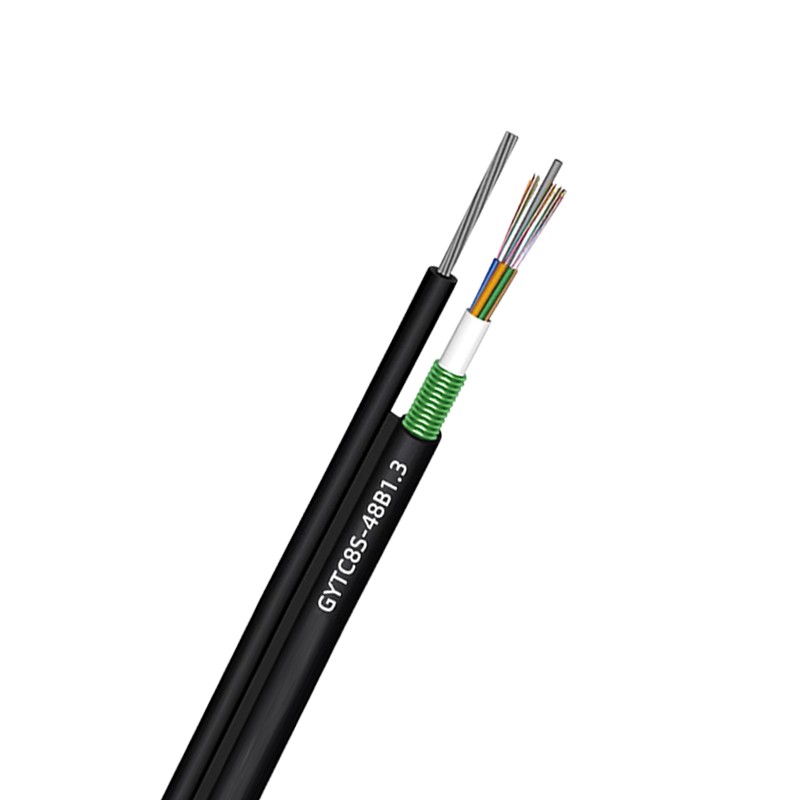

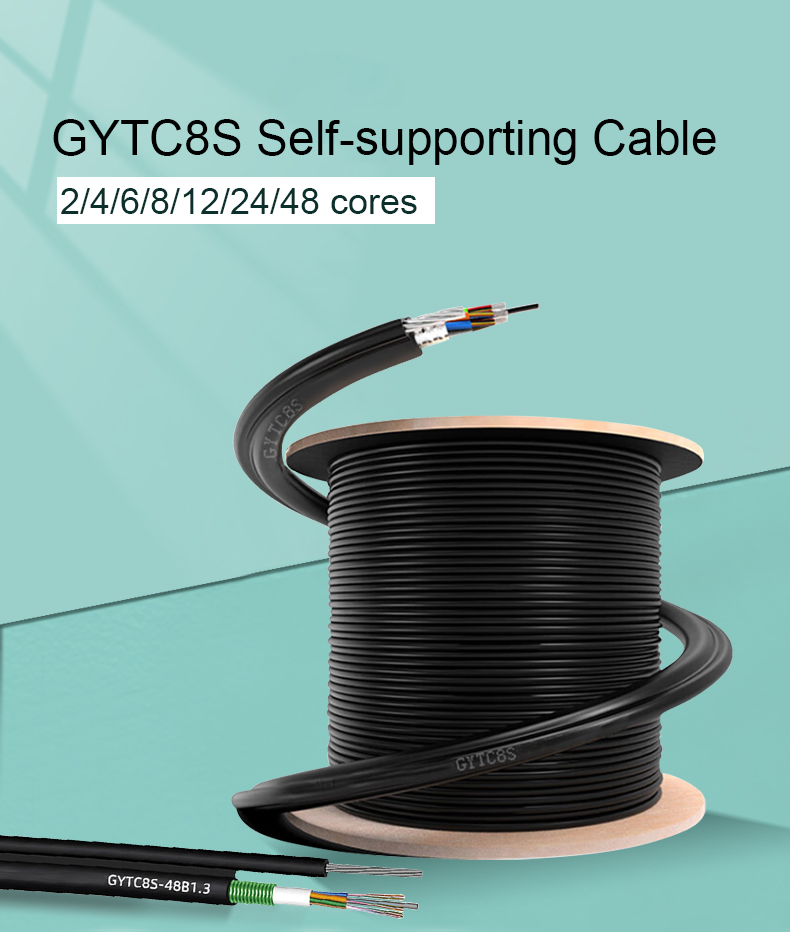

Name: GYTC8S Self-supporting Cable
Number of cores: 2/4/6/8/12/24, etc.
Cable diameter: 7.65*14.5
Suspension wire: φ1.0mm*7 steel strand
Connection diameter: 3.0*2.5mm
Length: Customizable
Allowable tension (N): Short-term 2500N Long-term: 1000N
Compression force (N/10cm): Short-term 1000N Long-term: 300N
Bending radius static/dynamic (mm): Short-term 160 Long-term: 80
