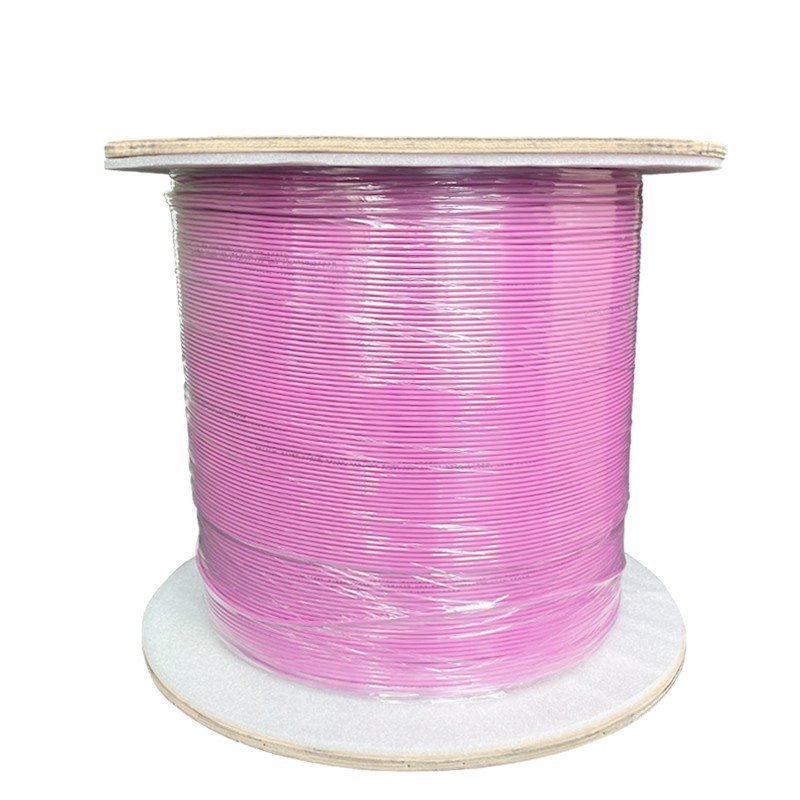

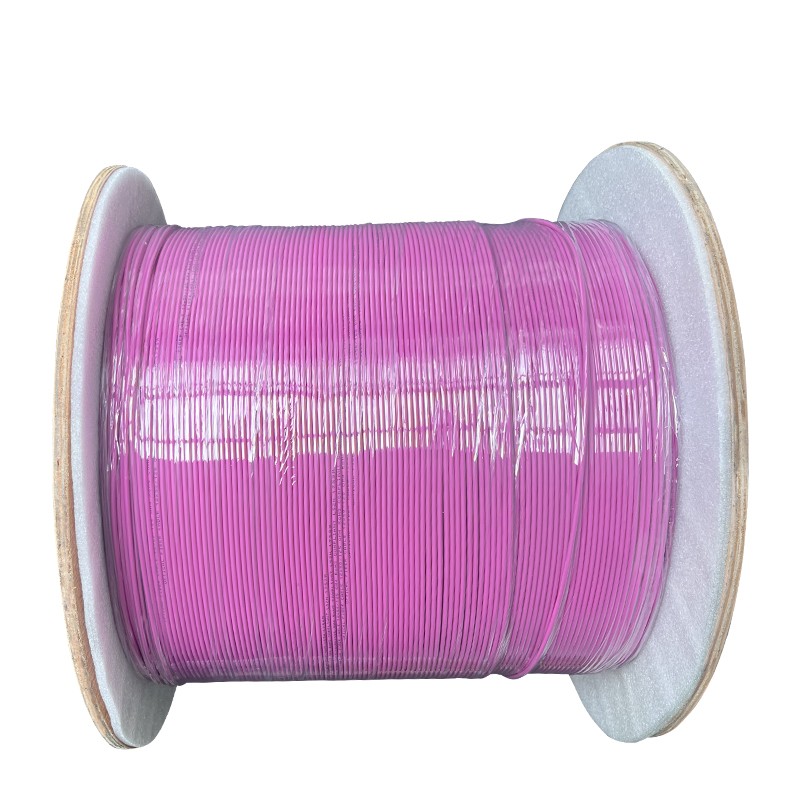

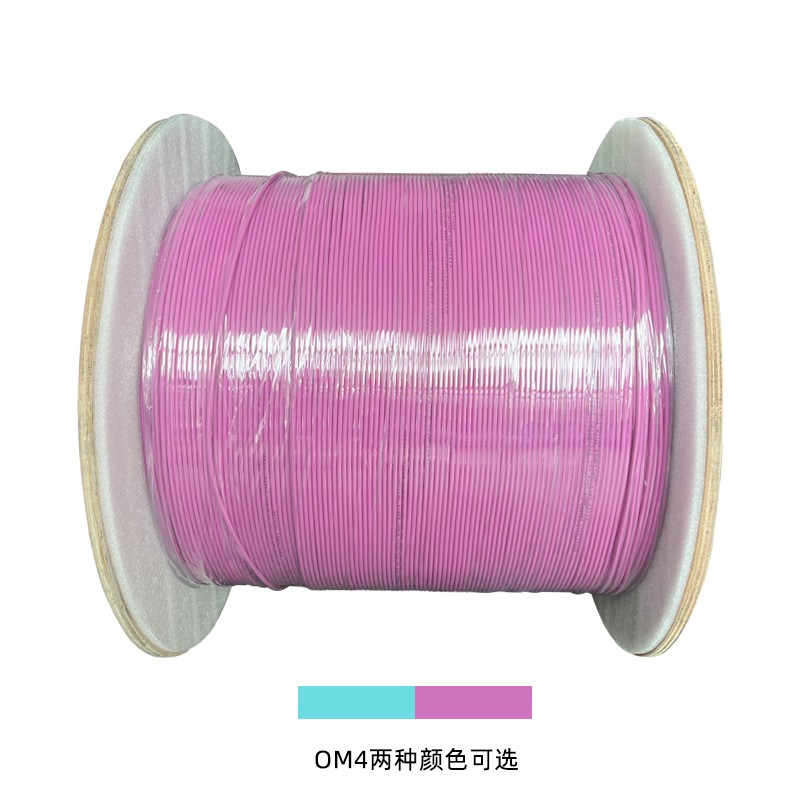

Name: OM4 multi-core bundled soft optical cable
Outer diameter of optical cable: 3.0mm
Outer jacket: LSZH
Number of cores: 2/4/6/8/12/24/48, etc.
12-core OM3 multimode optical cable test report:
Fiber Optic Chromatography
| Attenuation coefficient
|
|
| Atten@850nm
| Atten@1300nm
|
Blue
| 2.546
| 0.798
|
Orange
| 2.725
| 0.588
|
Green
| 2.539
| 0.655
|
Combined colors
| 2.717
| 0.759
|
Gray
| 2.528
| 0.686
|
White
| 2.676
| 0.652
|
Red
| 2.478
| 0.605
|
Black
| 2.738
| 0.637
|
Yellow
| 2.698
| 0.673
|
Purple
| 2.747
| 0.808
|
Pink
| 2.556
| 0.582
|
Aqua
| 2.468
| 0.799
|
