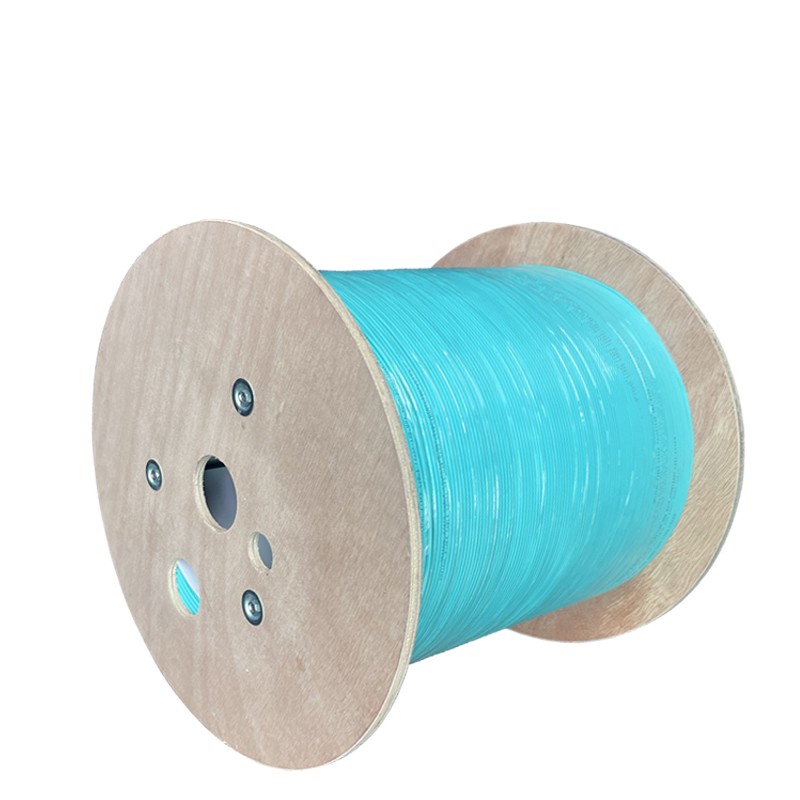

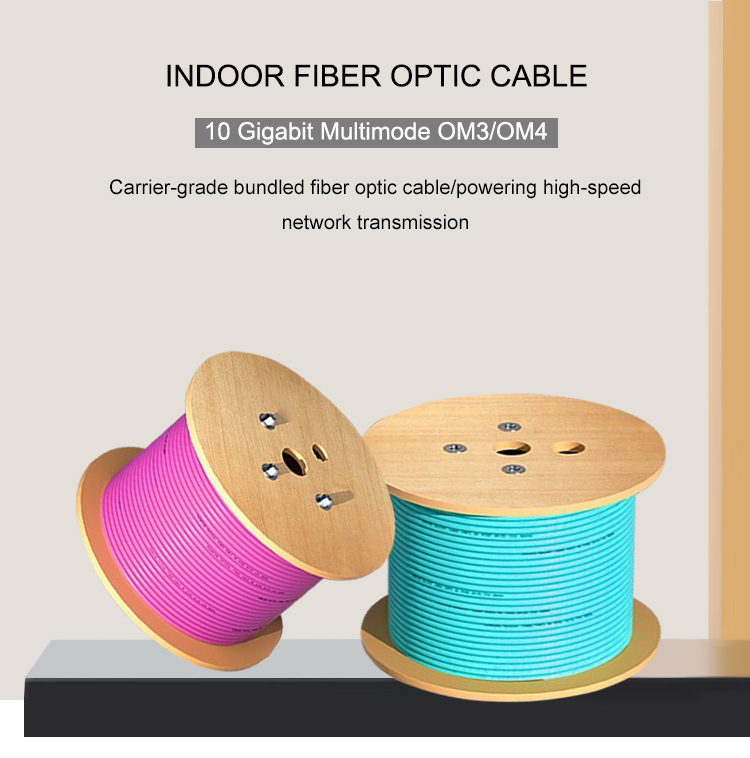

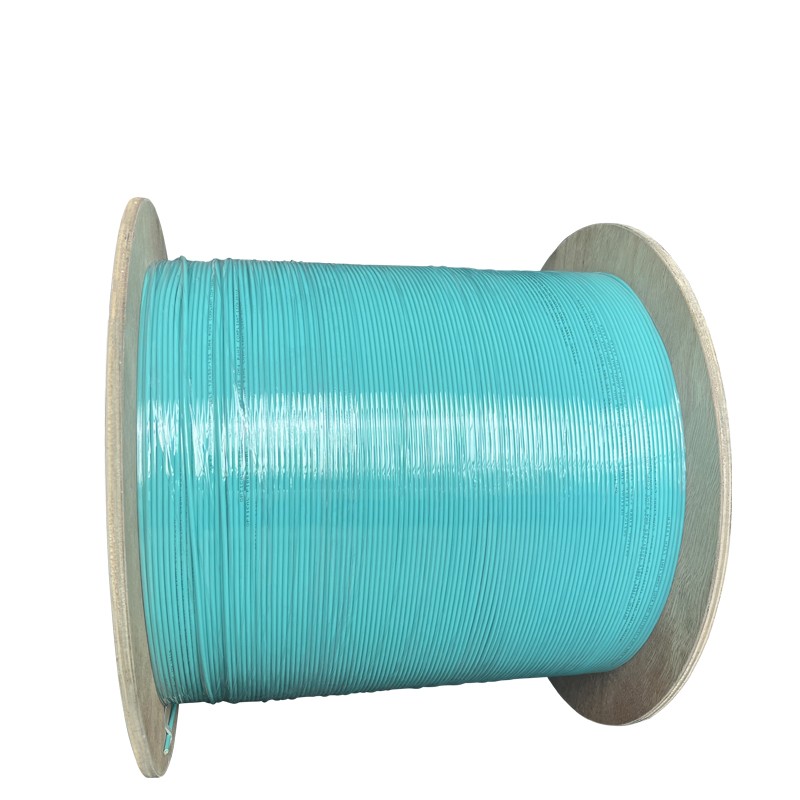

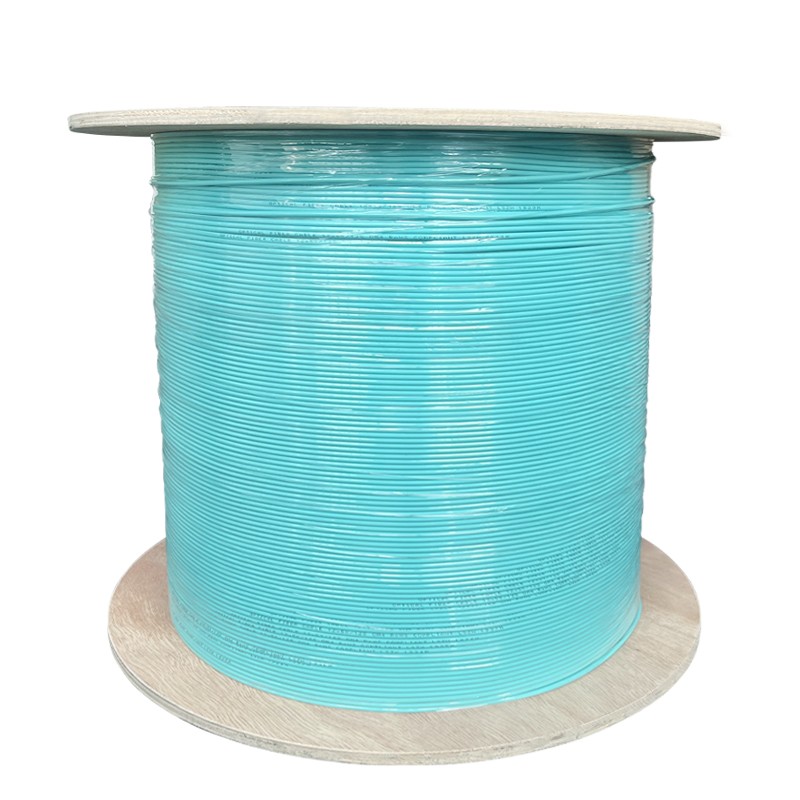

Name: OM3/OM4 multi-core bundled soft optical cable
Outer diameter of optical cable: 3.0mm

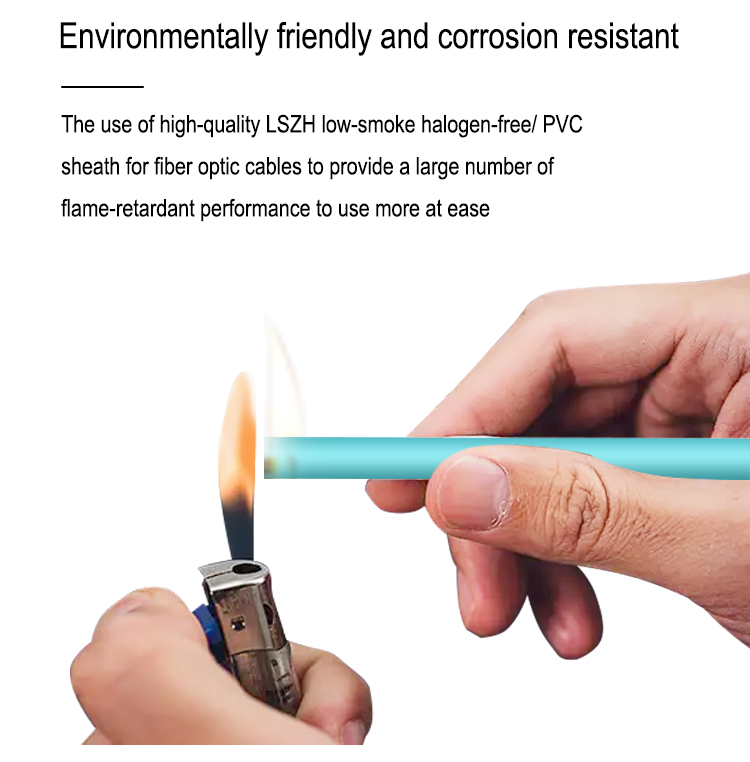

Shell: LSZH
Number of cores: 2/4/6/8/12/24/48, etc.
12-core OM3 bundled optical cable test table:
Fiber Optic Chromatography
| Attenuation coefficient
|
|
| Atten@850nm
| Atten@1300nm
|
Blue
| 2.546 | 0.798
|
Orange
| 2.752 | 0.568
|
Green
| 2.538
| 0.588
|
Brown
| 2.751
| 0.758
|
Grey
| 2.656
| 0.658
|
White
| 2.725
| 0.623
|
Red
| 2.737
| 0.671
|
Black
| 2.698
| 0.688
|
Yellow
| 2.845
| 0.808
|
Purple
| 2.748
| 0.595
|
Pink
| 2.714
| 0.653
|
Aqua
| 2.564
| 0.799
|
